SuperPoD
Designed for large-scale AI data centers, the best choice for trillion-parameter model training & inference
Atlas 950 SuperPoD
Atlas 850E SuperPoD Server
Product Features
- The largest SuperPoD, supporting up to 1,024 NPUs with 1.72 PB/s UB Link bandwidth
- Support 256 TB unified global memory addressing & memory semantics
- Support 64-NPU or 1,024-NPU flexible configurations
- Support up to 1 EFLOPS mxFP8/FP8/HiF8 compute power
- Support FP32/BF16/FP16/FP8/HiF8/MXFP8/MXFP4, for diverse quantization acceleration needs
- Supporting liquid cooling with 100 kW power supply
- Multi-level reliability design across devices, network, & systems for greater scaling-up
- UB links enable flash-cut self-recovery, transport-layer retransmission, & link continuity during lane degradation
- Cross-cabinet all-optical interconnect with 2+2 optical path protection for uninterrupted services

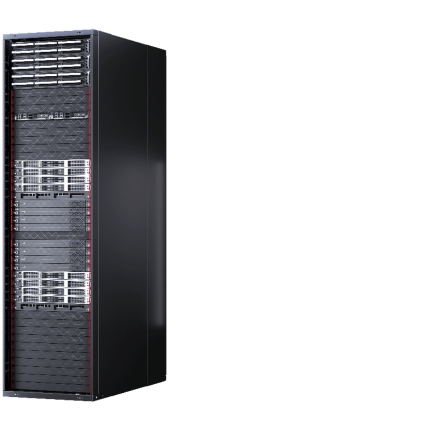

Atlas 950 SuperPoD Product Specifications
 | |
Form Factor | 44OU compute cabinet ≈ 47U compute cabinet |
NPU | 64 × 950DT NPU |
CPU | 16 × 950 CPU (up to 96 cores, 2.3GHz) |
System Memory | Support up to 192 memory slots running at up to 6400 MT/s Support 64 GB per DDR5 |
On-chip Memory | 64 × 96 GB total, 4.0 TB/s peak memory bandwidth |
AI Performance | 114.1 PFLOPS @ mxFP4 58.8 PFLOPS @ mxFP8/HiF8 31.1 PFLOPS @ FP16/BF16 |
UB Link Bandwidth | Support up to 64 x 1.68 TB/s (bidirectional) |
Storage | Up to 16 x 2.5 NVMe + 16 x 2.5 SATA Or 32 x 2.5 NVMe |
Bus Type | PCIe 5.0 x 4 x 8 |
Power Supply | Three-phase 380V AC + Three-phase 380V AC Three-phase 380V AC + HVDC 336V/240V DC HVDC 336V/240V DC + HVDC 336V/240V DC |
Cooling | Liquid cooling + Air cooling |
Power Usage | ～100 kW |
Operating Temperature | 5℃～40℃（41℉～104℉） |
Weight | 1,700 kg |
Dimensions | 2,250 mm × 600 mm × 1,400 mm (excluding front & back doors) |
Application Scenarios
Finance
Education & Research
Internet
AI Computing Center
Carriers
Transportation
