SoftmaxGradFusionPass

Description

Fuses small operators that fit the graph fusion pattern into the SoftmaxGrad operator.

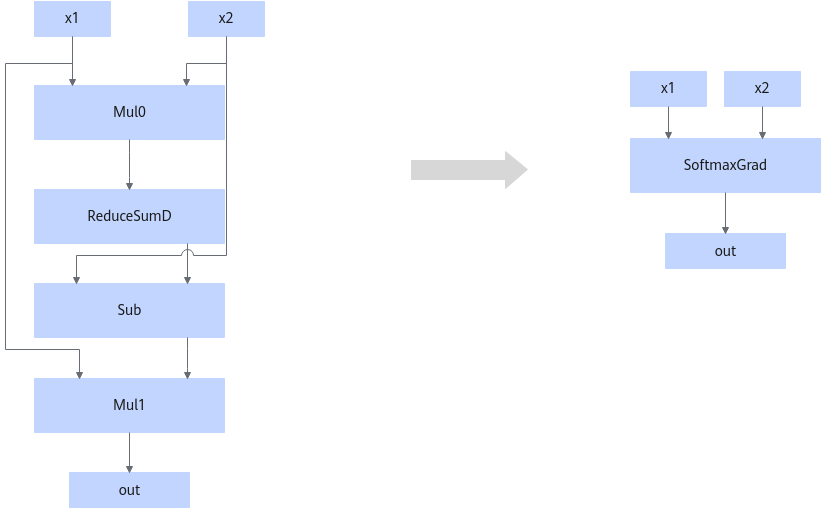

• Scenario 1

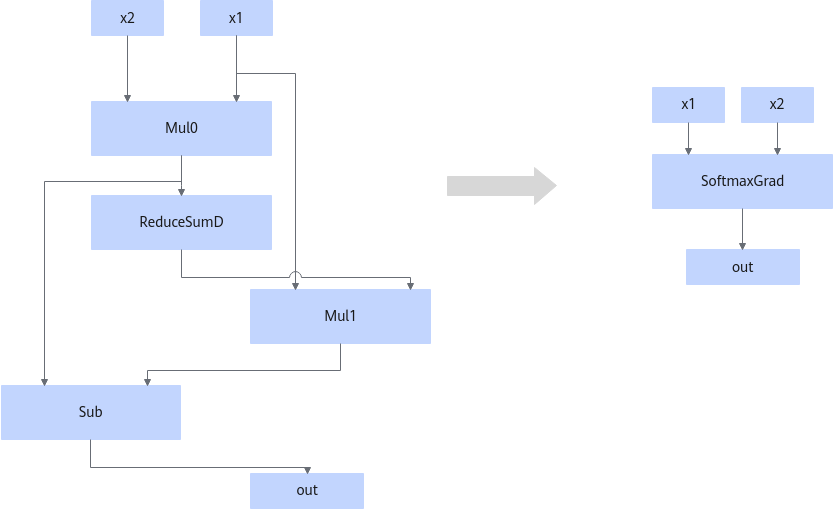

• Scenario 2

Restrictions

• The first inputs of both Mul0 and Mul1 must be the same.
• ReduceSumD can have only one output node.
• The fusion pattern does not take effect if the reduce axis is set to 1 and the AReduceSumFusionPass fusion pattern is enabled.
• In the subgraph of scenario 1:
  • The second input of Mul0 must be the same as the first input of Sub.
  • Mul0 can have only one output node.
  • Sub can have only one output node.
• In the subgraph of scenario 2:
  • The first input of Sub must be the output of Mul0.
  • Mul0 can have only two output nodes.
  • Mul1 can have only one output node.

Availability

Atlas A2 training product/Atlas A2 inference product
