MaskedSoftmaxWithRelPosBiasFusionPass

Description

Fuses Mul, Add, Reshape, and Softmax that meet the following conditions into the MaskedSoftmaxWithRelPosBias operator.

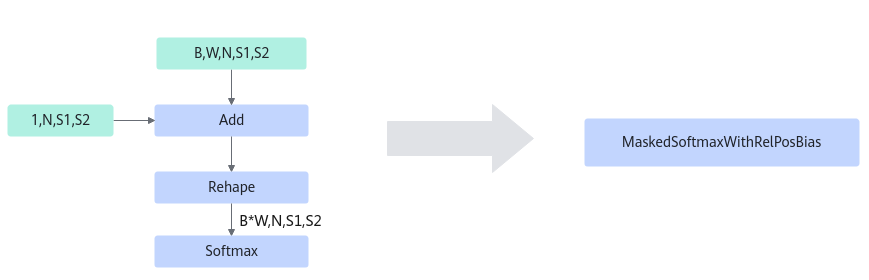

Mode 1

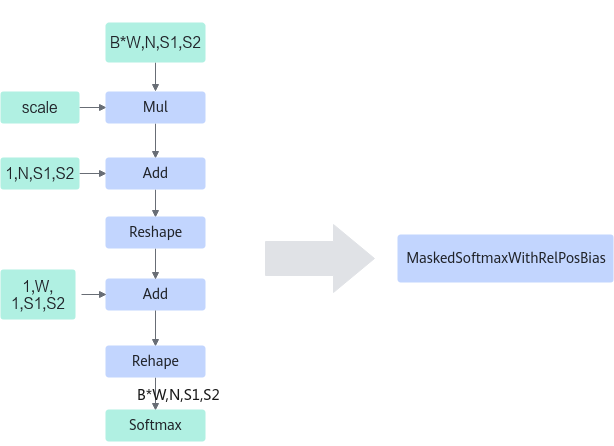

Mode 2

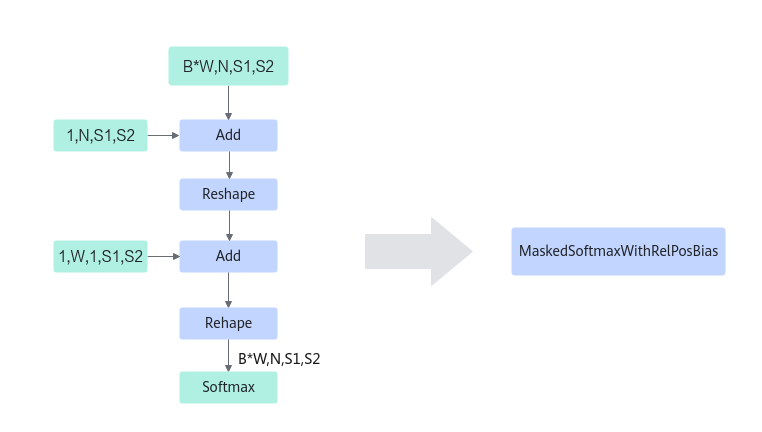

Mode 3

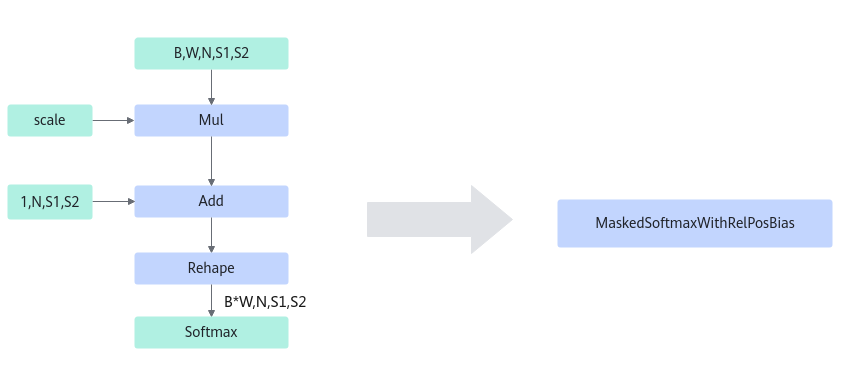

Mode 4

Restrictions

The input supports only four or five dimensions. Each fusion mode has the corresponding input shape, which is the base for constructing an operator. B, W, N, S1, and S2 indicate the dimensions of each shape, and scale indicates that the input is a scalar.

Availability

Atlas inference product

Atlas A2 training product/Atlas A2 inference product

Atlas A3 training product/Atlas A3 inference product
