BatchMatMulNonAlignedFusionPass

Description

Performs fusion in BatchMatMul non-alignment use cases.

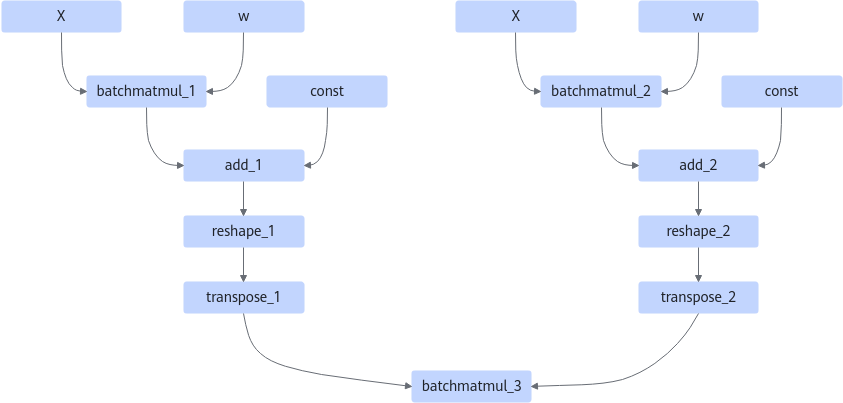

Pattern 1:

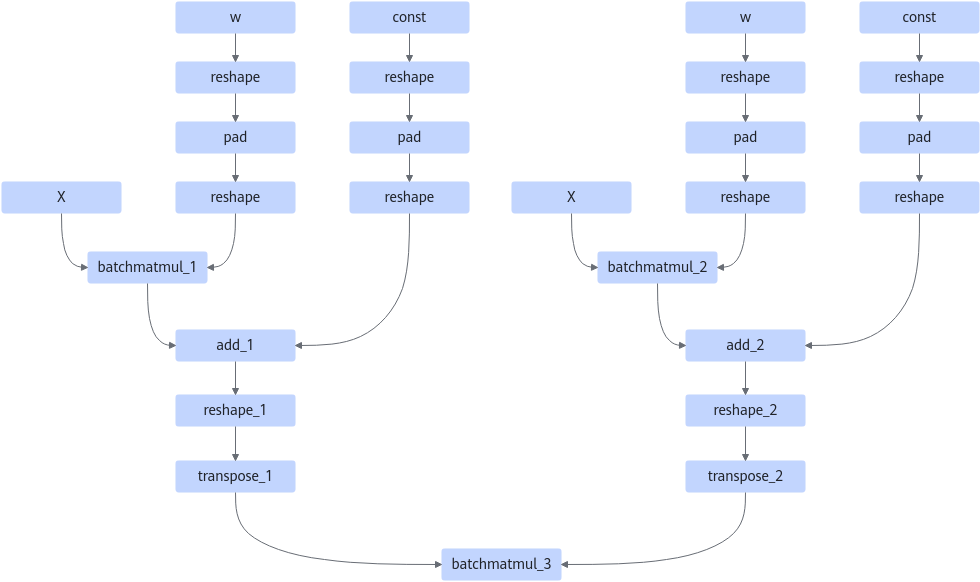

Before: After:

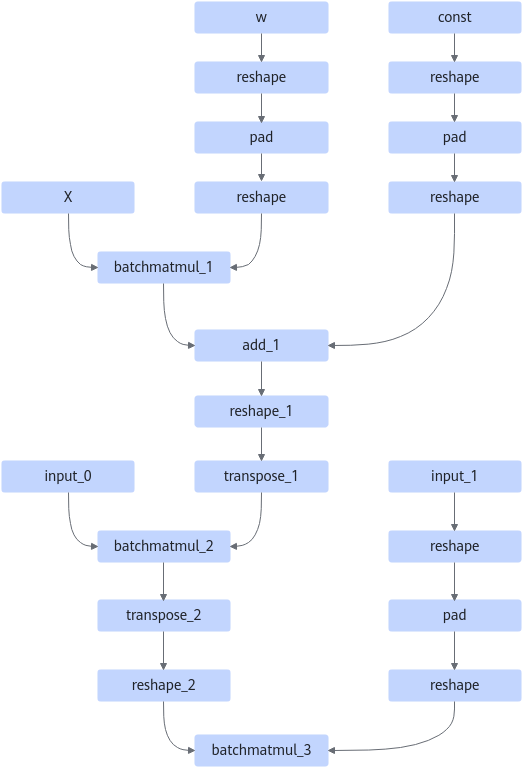

Pattern 2:

After:

Constraints

The input dimension M of BatchMatMul must be a multiple of 16, while the input dimension K must not be a multiple of 16.

Restrictions on the perm value in transpose are as follows:

1. If add_2 does not exist, the value of transpose.perm is {0,2,1,3}.

2. If add_2 exists, the value of transpose_1.perm is {0,2,1,3}, and the value of transpose_2.perm is {0,2,3,1}.
