Communication Profile Data Parsing

Applicability

Product	Supported
Atlas 350 Accelerator Card	√
Atlas A3 training product / Atlas A3 inference product	√
Atlas A2 training product / Atlas A2 inference product	√
Atlas 200I/500 A2 inference product	x
Atlas inference product	√
Atlas training product	√

Function

The msprof communication profile data parsing function is mainly used to collect statistics on communication-related information, such as the segment-based time consumption, copy information, and bandwidth, for communication data analysis. Communication data exists only in multi-device, multi-node, or cluster scenarios.

Precautions

Complete the operations in Before You Start first.
Run the msprof command to parse and export the PROF_XXX directory and disable data clearance mode. The following is a command example:
```
msprof --export=on --output=/home/xxx/profiler_data/PROF_XXX --clear=off
```
Direct parsing on the device is not supported for the products below. You must copy the generated PROF_XXX directory to an environment where the Toolkit package is installed.
- Ascend RC scenario of the Atlas 200I/500 A2 inference product

Command Format

msprof CLI:

msprof --analyze=on [--type=<type>] [--rule=communication] --output=<dir> [--clear=on]

msprof.py script:

python3 msprof.py analyze [--type <type>] --rule communication -dir <dir> [--clear]

Command-line Options

**Table 1** Command-line options (msprof CLI)
Option	Description	Optional/Required
--analyze	Profile data file to be analyzed, either on or off (default). on: This option is enabled. off: This option is disabled.	Required
--type	Format of the profile data parsing result file. That is, you can choose the format of the result file generated after the profile data collected by the msprof command is automatically parsed. The available formats include: text: parsed into a .json file and a communication_analyzer.db file. db: parsed into a communication_analyzer.db file. The default value is text.	Optional
--rule	Analysis rule. Possible values are as follows: communication: analyzes communication data. If --type is set to text, the communication.json file is generated in the PROF_XXX/analyze directory to display details about the communication duration and bandwidth of all communication operators on a single rank (see Figure 4), and the communication_analyzer.db file is also generated. If --type is set to db, only the communication_analyzer.db file is generated in the PROF_XXX/analyze directory to save the CommAnalyzerTime (communication duration) and CommAnalyzerBandwidth (communication bandwidth) information tables. communication_matrix: analyzes communication matrix data. If --type is set to text, the communication_matrix.json file is generated in the PROF_XXX/analyze directory to display basic information about communication operators, including the communication size, bandwidth, and rank information used to analyze communication details (see Figure 5). The communication_analyzer.db file is also generated. If --type is set to db, only the communication_analyzer.db file is generated in PROF_XXX/analyze to store the CommAnalyzerMatrix (communication matrix) information table. You can set either or both of the two values. If you set both of them, use a comma (,) to separate the values, for example, :--rule=communication,communication_matrix. By default, they are both set.	Optional
--output	Directory for storing the profile data file. The value must be PROF_XXX, for example, /home/HwHiAiUser/profiler_data/PROF_XXX. The path cannot contain the following characters: "\n", "\\n", "\f", "\\f", "\r", "\\r", "\b", "\\b", "\t", "\\t", "\v", "\\v", "\u007F", "\\u007F", "\"", "\\\"", "'", "\'", "\\", "\\\\", "%", "\\%", ">", "\\>", "<", "\\<", "\|", "\\\|", "&", "\\&", "$", "\\$", ";", "\\;", "`", "\\`".	Required
--clear	Data clearance mode. After this option is enabled, the sqlite directory in PROF_XXX is deleted after profile data is exported, so as to save storage space. The value can be on or off (default).	Optional

**Table 2** Command-line options (msprof.py script)
Option	Description	Optional/Required
analyze	Analyze the profile data file.	Required
--type	Format of the profile data parsing result file. That is, you can choose the format of the result file generated after the profile data collected by the msprof.py script is automatically parsed. The available formats include: text: parsed into a .json file and a communication_analyzer.db file. db: parsed into a communication_analyzer.db file. The default value is text.	Optional
-r or --rule	Analysis rule. Possible values are as follows: communication: analyzes communication data. If --type is set to text, the communication.json file is generated in the PROF_XXX/analyze directory to display details about the communication duration and bandwidth of all communication operators on a single rank (see Figure 4), and the communication_analyzer.db file is also generated. If --type is set to db, only the communication_analyzer.db file is generated in the PROF_XXX/analyze directory to save the CommAnalyzerTime (communication duration) and CommAnalyzerBandwidth (communication bandwidth) information tables. communication_matrix: analyzes communication matrix data. If --type is set to text, the communication_matrix.json file is generated in the PROF_XXX/analyze directory to display basic information about communication operators, including the communication size, bandwidth, and rank information used to analyze communication details (see Figure 5). The communication_analyzer.db file is also generated. If --type is set to db, only the communication_analyzer.db file is generated in PROF_XXX/analyze to store the CommAnalyzerMatrix (communication matrix) information table. You can set either or both of these two parameters. If you set both of them, use a comma (,) to separate them, for example, --rule communication,communication_matrix.	Required
-dir, or --collection-dir	Directory for storing the profile data file. The value must be PROF_XXX, for example, /home/profiler_data/PROF_XXX. The path cannot contain the following characters: "\n", "\\n", "\f", "\\f", "\r", "\\r", "\b", "\\b", "\t", "\\t", "\v", "\\v", "\u007F", "\\u007F", "\"", "\\\"", "'", "\'", "\\", "\\\\", "%", "\\%", ">", "\\>", "<", "\\<", "\|", "\\\|", "&", "\\&", "$", "\\$", ";", "\\;", "`", "\\`".	Required
--clear	Data clearance mode. After this option is enabled, the sqlite directory in PROF_XXX is deleted after profile data is exported, so as to save storage space. When this parameter is configured, the data clearance mode is enabled. This parameter is not configured by default.	Optional

Example (msprof CLI)

Specify the /home/profiler_data/PROF_XXX directory as the profile data file directory and enable the profile data file analysis option.

msprof --analyze=on --output=/home/profiler_data/PROF_XXX

Example (msprof.py Script)

Log in to the development environment as the Toolkit running user.
Switch to the directory where the msprof.py script is located.
${INSTALL_DIR}/tools/profiler/profiler_tool/analysis/msprof. Replace ${INSTALL_DIR} with the CANN component directory. For example, if the installation is performed by the root user, the default file storage path is /usr/local/Ascend/cann.
Specify the /home/profiler_data/PROF_XXX directory as the profile data file directory and run the following command:
```
python3 msprof.py analyze --rule communication -dir /home/profiler_data/PROF_XXX
```

Output File Description

--type=text or --type=db, and --rule=communication

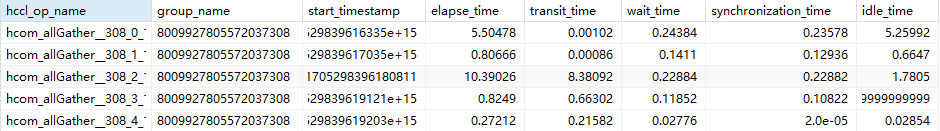

Figure 1 CommAnalyzerTime

**Table 3** CommAnalyzerTime
Field	Description
hccl_op_name	Communication operator name.
group_name	Group of communication operators.
start_timestamp	Communication start timestamp.
elapse_time	Total operator communication duration, in ms.
transit_time	Communication duration, in ms. If the communication duration is too long, a link may be faulty.
wait_time	Waiting duration, in ms. Before establishing communication between nodes, ensure that the synchronization between the two nodes is complete.
synchronization_time	Synchronization duration, in ms. It is the duration required for synchronization between nodes.
idle_time	Idle time, in ms. Idle time (idle_time) = Total operator communication duration (elapse_time) – Communication duration (transit_time) – Waiting duration (wait_time)

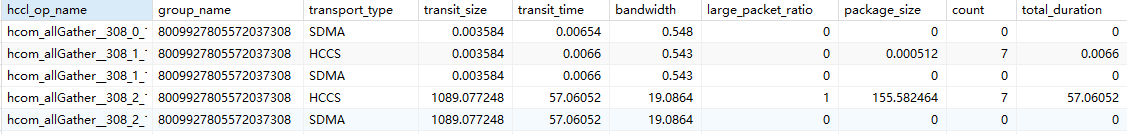

Figure 2 CommAnalyzerBandwidth

**Table 4** CommAnalyzerBandwidth
Field	Description
hccl_op_name	Communication operator name.
group_name	Group of communication operators.
transport_type	Communication transmission type, including LOCAL, SDMA, RDMA, PCIE, SIO, and HCCS.
transit_size	Communication data volume, in MB.
transit_time	Communication duration, in ms. If the communication duration is too long, a link may be faulty.
bandwidth	Communication bandwidth, in GB/s.
large_packet_ratio	Ratio of large communication data packets.
package_size	Size of a communication data packet transmitted at a time, in MB.
count	Number of communication transmission times.
total_duration	Total duration of data transmission, in ms.

--type=text or --type=db, and --rule=communication_matrix

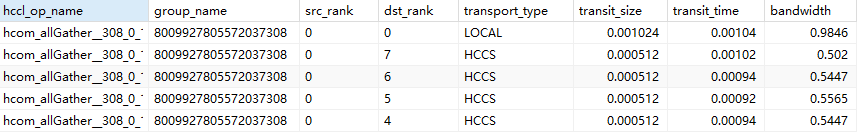

Figure 3 CommAnalyzerMatrix

**Table 5** CommAnalyzerMatrix
Field	Description
hccl_op_name	Communication operator name.
group_name	Group of communication operators.
src_rank	Rank of the communication source.
dst_rank	Rank of the communication destination.
transport_type	Communication transmission type, including LOCAL, SDMA, RDMA, PCIE, SIO, and HCCS.
transit_size	Communication data volume, in MB.
transit_time	Communication duration, in ms. If the communication duration is too long, a link may be faulty.
bandwidth	Communication bandwidth, in GB/s.

--type=text, --rule=communication

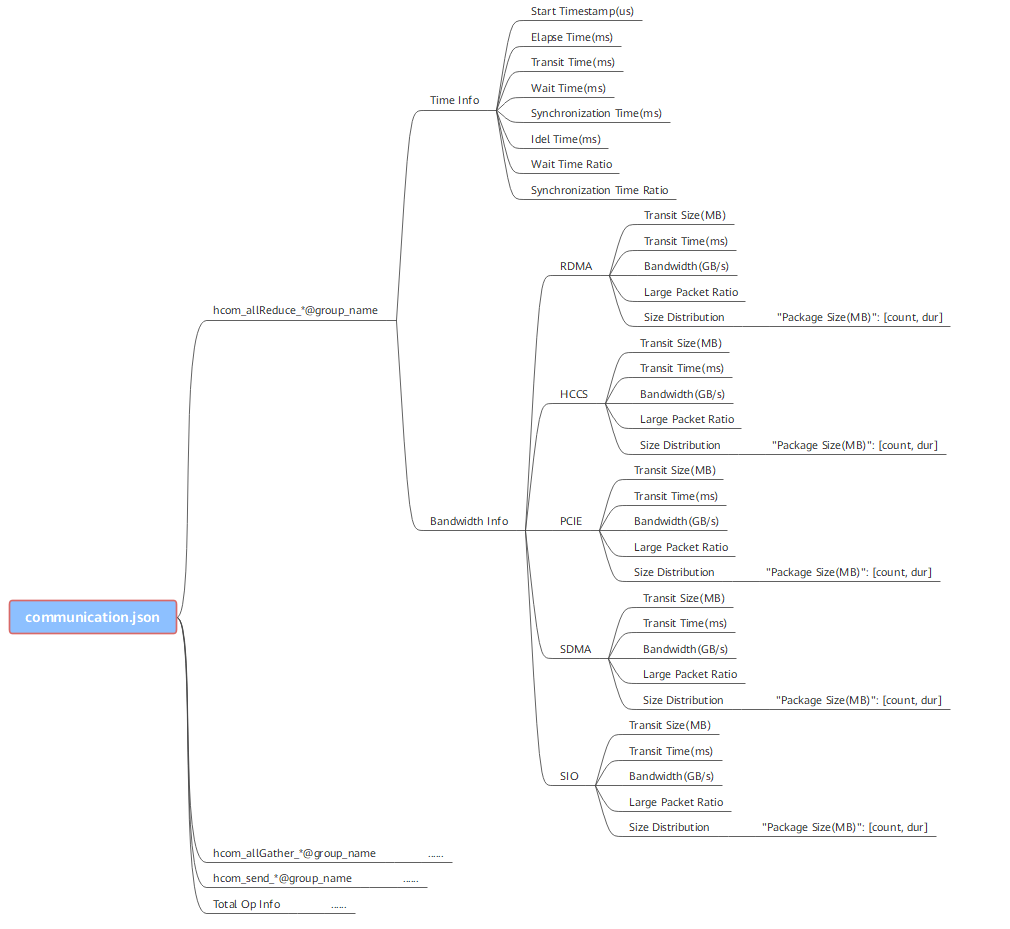

Figure 4 communication.json
--type=text, --rule=communication_matrix

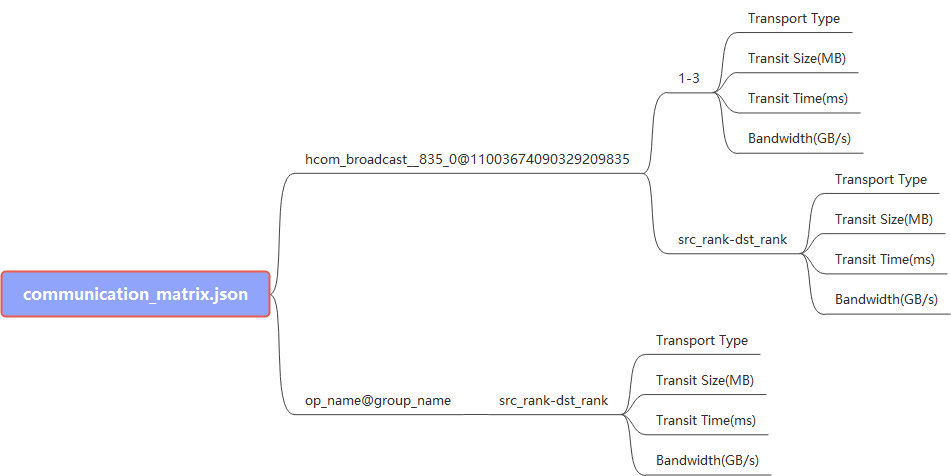

Figure 5 communication_matrix.json

Parent topic: Using the msprof Command to Parse, Query, and Export the Profile Data
