Graph Integration Process

Environment Setup

• Install the CANN software package by referring to Environment Setup and set environment variables.
• Install PyTorch, Ascend for PyTorch, and TorchAir. For details about the version mapping between them and the CANN software package, click here and see "Release Notes" > Related Product Version Mapping."

  For details about the installation method, click here and see "Installation Guide" > "Installing TorchNPU." TorchAir is installed together with the Ascend for PyTorch package as a third-party library of Ascend for PyTorch.

Graph Integration Process

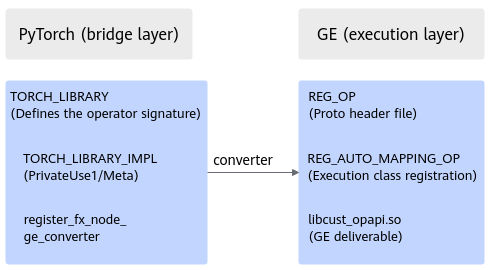

The process of integrating custom operators into a graph consists of five progressive phases. You can complete the deliverables for each phase in sequence for graph integration. The following figure shows the deliverables on PyTorch and GE.

The responsibilities and deliverables of each phase are described in the table below.

The following table describes the relationships between each phase and execution scenarios in Execution Scenarios.

Each phase and its deliverables are described in detail as follows:

1. Phase 1: Operator definition

   In the operator definition phase, operator metadata, such as the inputs, outputs, and attributes, is declared for use in subsequent phases. In the PyTorch scenario, parallel definition on both the GE and PyTorch is required.

   Frontend Framework	Definition Method	Deliverable	Description
   GE	REG_OP header file	op_graph/include/*.h	Manually written proto definition
   PyTorch	TORCH_LIBRARY	python/*.py	Defined schema (function signature)

   • Example of REG_OP on the GE:

     // Register the GE operator prototype: define the inputs, outputs, and attributes of the operator.
     // op_graph/include/add_custom.h
     REG_OP(AddCustom)
         .INPUT(x, TensorType({DT_FLOAT, DT_FLOAT16})) // Declare input x.
         .INPUT(y, TensorType({DT_FLOAT, DT_FLOAT16})) // Declare input y.
         .OUTPUT(z, TensorType({DT_FLOAT, DT_FLOAT16})) // Declare output z.
         .OP_END_FACTORY_REG(AddCustom);

   • Example of TORCH_LIBRARY on the PyTorch:

     # python/add_custom.py
     import torch

     # Define the operator schema, which must be the same as the input and output of REG_OP.
     torch.library.define("my_ops", "add_custom(Tensor x, Tensor y) -> Tensor")

     Consistency requirements: The number and types of inputs and outputs in the PyTorch schema must be strictly consistent with those defined in REG_OP. Otherwise, an error will be reported during graph conversion.

2. Phase 2: Frontend integration

   In the frontend integration phase, map PyTorch FX nodes to GE operator types. The TorchAir converter mechanism is used in the PyTorch scenario, which requires deliverables on both sides.

   Frontend Framework	Integration Method	Deliverable Involved	Key Point
   PyTorch	TorchAir converter	Python converter function	register_fx_node_ge_converter

   On the Python, the following steps are required:

   1. Define the operator schema using TORCH_LIBRARY.
   2. Register keys such as PrivateUse1 (NPU execution), Meta (shape inference), and XLA (graph compilation) using TORCH_LIBRARY_IMPL.
   3. Use @torchair.register_fx_node_ge_converter to map PyTorch FX nodes to GE operator types.

   Integration code on the Python:

   # python/add_custom_converter.py
   import torch
   import torchair

   # Define the operator schema.
   torch.library.define("my_ops", "add_custom(Tensor x, Tensor y) -> Tensor")

   # Register the implementation (PrivateUse1 = NPU execution).
   @torch.library.impl("my_ops.add_custom", "PrivateUse1")
   def add_custom_impl(x, y):
       return torch.empty_like(x)  # Placeholder. The actual execution is handled by GE.

   # Register the GE converter to map the FX node to the GE operator.
   @torchair.register_fx_node_ge_converter(torch.ops.my_ops.add_custom.default)
   def convert_add_custom(x, y, meta_outputs=None):
       return torchair.ge.custom_op(
           "AddCustom",           # GE operator type (must be the same as REG_AUTO_MAPPING_OP)
           inputs={"x": x, "y": y},
           outputs=["z"]
       )

   Deliverable structure example:

   custom_opp/
   ├── op_graph/
   │   ├── include/add_custom.h    # REG_OP
   │   └── lib/linux/x86_64/libcust_opapi.so  # GE deliverable
   └── python/
       ├── add_custom.py           # TORCH_LIBRARY definition
       └── add_custom_converter.py # Converter registration

3. Phase 3: Graph construction and integration

   In the graph construction and integration phase, the PyTorch FX graph is automatically converted into a GE computational graph.

   Frontend Framework	Graph Integration Path	Conversion Mechanism
   PyTorch	FX Graph → GE Graph	TorchAir

   This phase is automatically completed by TorchAir, and you do not need to provide any additional deliverables. After the graph integration is complete, the GE graph already contains the custom operator node.

4. Phase 4: Graph compilation

   The callback APIs for graph compilation are triggered during GE compilation and are used for shape inference, kernel compilation, and serialization. Callback APIs and triggering timing are described in the table below.

   Callback API	Triggering Timing	Application Scenario
   InferShape	Compile-time shape inference	All scenarios (optional)
   InferDataType	Compile-time data type inference	All scenarios (optional)
   Compile	Compile-time RTC kernel compilation	Online compilation/Offline OM
   Serialize	Writing data to the OM during ATC compilation	Offline OM

   For details about the callback API examples, see Callback APIs.

5. Phase 5: Graph execution

   This phase is the core of custom operator integration. GE calls back the Execute API during execution.

   Callback APIs and triggering timing are described in the table below.

   Callback API	Triggering Timing	Application Scenario
   Execute	Runtime kernel execution	All scenarios (mandatory)
   Deserialize	Restoring binary during OM loading	Offline OM
   UpdateHostArgs	Updates upon I/O address changes	Static graph offloading

   For details about the callback API examples, see Callback APIs.

Project Compilation and Deployment

Key elements for CMake build:

# Header file paths (mandatory)
target_include_directories(my_op PRIVATE
    ${ASCEND_HOME_PATH}/include
    ${ASCEND_HOME_PATH}/include/graph
    ${ASCEND_HOME_PATH}/include/register
    ${ASCEND_HOME_PATH}/include/external
)

# Link libraries (optional)
target_link_libraries(my_op PRIVATE
    ascendcl acl_rt ge_compiler ge_executor
)

# Output the .so library.
add_library(my_op SHARED custom_op.cpp)

Additional dependencies in the PyTorch scenario: links to Ascend for PyTorch, c10, lowering, and other related libraries, and the Ascend for PyTorch header file paths included The build artifact must be installed according to the OPP package specifications, as shown below:

output/                              # ASCEND_CUSTOM_OPP_PATH points to this directory.
├── op_graph/
│   ├── include/my_op.h              # .proto header file (for graph construction)
│   └── lib/linux/x86_64/
│       ├── libcust_opapi.so         # Deliverable
│       └── my_kernel.cpp            # Kernel source code (required in RTC scenarios)
└── bin/
    └── my_kernel.bin                # Kernel binary (optional)
