hccs (HCCS Bandwidth)

The timeline information of the HCCS bandwidth data is displayed at the HCCS layer in the msprof_*.json file, and the summary information is summarized in the hccs_*.csv file.

Applicable Products

Product	Supported
Ascend 950PR/Ascend 950DT	√
Atlas A3 training products/Atlas A3 inference products	√
Atlas A2 training products/Atlas A2 inference products	√
Atlas 200I/500 A2 inference products	x
Atlas inference products	x
Atlas training products	√

Data at the HCCS Layer in msprof_*.json

The following figure shows data at the HCCS level in the msprof_*.json file.

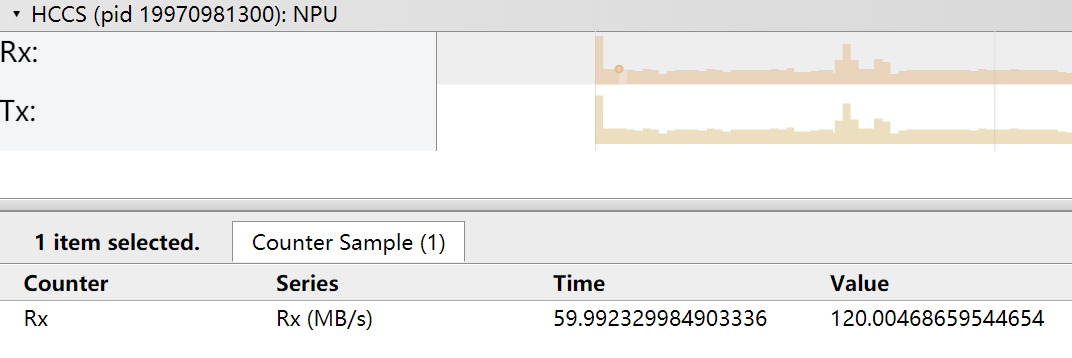

Figure 1 HCCS layer

**Table 1** Field description
Field	Description
Rx, Tx	Receive bandwidth and transmit bandwidth (MB/s).

hccs_*.csv File

The file content is formatted as follows.

Figure 2 hccs_*.csv

**Table 2** Field description
Field	Description
Device_id	Device ID.
Mode	Tx (transmit bandwidth) and Rx (receive bandwidth). The unit is MB/s.
Max	Maximum bandwidth (MB/s).
Min	Minimum bandwidth (MB/s).
Average	Average bandwidth (MB/s).
