配置用户权限

完成安装perf、iotop、ltrace工具后，需要给用户配置依赖权限，且每次重新安装CANN软件包需要重新配置。可参见如下步骤进行配置。

  1. 以root用户登录环境。
  2. 执行如下命令，在/usr/bin/目录下创建文件msprof_data_collection.sh。
    cd /usr/bin
touch msprof_data_collection.sh
  3. 在msprof_data_collection.sh文件中添加脚本内容。
    1. 打开msprof_data_collection.sh文件。
      chmod u+wx msprof_data_collection.sh
vi msprof_data_collection.sh
    2. 拷贝以下代码到msprof_data_collection.sh文件中。

      须先确保环境支持pstree命令。

        1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187

      #!/bin/bash
# This script is used to run perf/iotop/ltrace by profiling.

command_type=$1
command_param=$2
script_dir="/usr/bin"
script_name="$(basename "$0")"
reg_int='^[1-9][0-9]{,6}$|^0$'

function get_version(){
    if [ "${command_param}" = "perf" ] || [ "${command_param}" = "ltrace" ] || [ "${command_param}" = "iotop" ]; then
        "${command_param}" --version
    else
        printf "The value of the second parameter is incorrect, please enter the correct parameter, "
        printf "such as: perf, ltrace, iotop\n"
        exit 1
    fi
}

function kill_prof_cmd(){
    if [[ ${command_param} =~ ${reg_int} ]]; then
        ppid=`ps -o ppid= -p ${command_param}`
        ppid_user=$(ps -o uid -e -o pid | awk -va="${ppid}" '$2==a {print $1}')
        shell_user=`id -u ${SUDO_USER}`
        if [ "${ppid_user}" != "${shell_user}" ]; then
            echo "UID of ${ppid} is:${ppid_user}, UID running this script is:${shell_user}"
            exit 1
        fi
        pidLine=`pstree -p ${command_param}`
        pidLine=`echo $pidLine | awk 'BEGIN{ FS="(" ; RS=")" } NF>1 { print $NF }'`
        for pid in $pidLine
            do
                sudo kill -2 ${pid}
            done
        exit 1
    else
        echo "Input pid:${command_param} error"
        exit 1
    fi
}

#当前跑这个脚本的用户和pid进程所属的用户要一致
function check_pid(){
    if [[ ! ${command_param} =~ ${reg_int} ]]; then
        echo "Input pid:${command_param} error"
        exit 1
    fi
    params=$(cat /proc/sys/kernel/pid_max)
    if [[ ! "$params" =~ ${reg_int} ]]; then
        echo "Get max_pid error"
        exit 1
    fi
    if [ "${command_param}" -gt "${params}" ]; then
        echo "Input pid:${command_param} gt pid_max:${params}"
        exit 1
    fi
    pid_user=$(ps -o uid -e -o pid | awk -va="${command_param}" '$2==a {print $1}')
    shell_user=`id -u ${SUDO_USER}`
    if [ "${pid_user}" != "${shell_user}" ]; then
        echo "UID of ${command_param} is:${pid_user}, UID running this script is:${shell_user}"
        exit 1
    fi
}

function run_prof_trace_cmd(){
    check_pid
    perf trace -T --syscalls -p "${command_param}"
}

function run_ltrace_cmd(){
    check_pid
    ltrace -ttt -T -e pthread_attr_init -e pthread_create -e pthread_join -e pthread_mutex_init -p "${command_param}"
}

function run_iotop_cmd(){
    check_pid
    iotop -b -d 0.02 -P -t -p "${command_param}"
}

function check_username(){
    echo "${command_param}" | grep -q -E '^[ 0-9a-zA-Z./:]*$'
    result=$?
    if [ "$result" -ne 0 ]; then
        echo "Parameter:${command_param} is invalied!"
        exit 1
    fi
    if ! id -u "${command_param}" >/dev/null 2>&1 ; then
        echo "User:${command_param} does not exist"
        exit 1
    fi
}

function get_cmd(){
    params=$(cat /proc/sys/kernel/pid_max)
    if [[ ! "$params" =~ ${reg_int} ]]; then
        echo "Get max_pid error"
        exit 1
    fi
    digits=1
    while ((${params}>10)); do
        let "digits++"
        ((params /= 10))
    done
    compile='[1-9]'
    arr[0]='[0-9]'
    for((i=1;i<digits;i++)); do
        compile="${compile}[0-9]"
        arr[i]=${compile}
    done
    cmd="${script_dir}/${script_name} get-version perf,${script_dir}/${script_name} get-version ltrace,${script_dir}/${script_name} get-version iotop"
    cmd="${cmd},${script_dir}/${script_name} kill pid"
    for i in "${arr[@]}"; do
        cmd="${cmd},${script_dir}/${script_name} perf $i,${script_dir}/${script_name} ltrace $i,${script_dir}/${script_name} iotop $i"
    done
    cmd="$command_param ALL=(ALL:ALL) NOPASSWD:${cmd}"
    cmd=$(echo -e "${cmd}\nDefaults env_reset")
    echo "${cmd}"
}

function set_sudoers(){
    if [ -d "/etc/sudoers.d" ]; then
        if [ -f "/etc/sudoers.d/${command_param}_profiling" ]; then
            echo "The file /etc/sudoers.d/${command_param}_profiling already exist"
        fi
        echo "${cmd}" > /etc/sudoers.d/"${command_param}"_profiling
        result=$?
        if [ "$result" -ne 0 ]; then
            echo "Set cmd to /etc/sudoers.d/${command_param}_profiling failed!"
            exit 1
        else
            echo "The user permission have been configured successfully. You can find the configuration file /etc/sudoers.d/${command_param}_profiling"
            exit
        fi
    fi
    has_add=$(cat /etc/sudoers|grep "${script_name}"|grep "${command_param}")
    if [ "${has_add}" ]; then
        echo "The configure already exist, please confirm its content is correct"
        exit
    fi
    chmod u+w /etc/sudoers
    result=$?
    if [ "$result" -ne 0 ]; then
        echo "Permission configure failed"
        exit 1
    fi
    echo "${cmd}" >> /etc/sudoers
    chmod u-w /etc/sudoers
    echo "The user permission have been configured successfully. You can find the configuration file in the /etc/sudoers."
}

function handle_sudoers(){
    check_username
    get_cmd
    set_sudoers
}

function main(){
    if [ $# -ne 2 ]; then
        echo "The number of parameters is incorrect, please enter two parameters"
        exit 1
    fi
    if [ "${command_type}" = "set-sudoers" ]; then
        echo "Run set-sudoers cmd"
        handle_sudoers
    elif [ "${command_type}" = "get-version" ]; then
        #echo "Run get-version cmd"
        get_version
    elif [ "${command_type}" = "kill" ]; then
        #echo "kill cmd"
        kill_prof_cmd
    elif [ "${command_type}" = "perf" ]; then
        #echo "run perf trace cmd"
        run_prof_trace_cmd
    elif [ "${command_type}" = "ltrace" ] ; then
        #echo "run ltrace cmd"
        run_ltrace_cmd
    elif [ "${command_type}" = "iotop" ]; then
        #echo "run iotop cmd"
        run_iotop_cmd
    else
        printf "The value of the first parameter is incorrect, please enter the correct parameter, "
        printf "such as: set-sudoers, get-version, kill, perf, ltrace, iotop\n"
        exit 1
    fi
}

main "$@"
    3. 保存退出后，执行如下命令取消msprof_data_collection.sh文件的写权限：
      chmod u-w msprof_data_collection.sh
    4. 保证其他用户对msprof_data_collection.sh文件无写权限：
      chmod o-w msprof_data_collection.sh
  4. 执行如下命令，给安装用户运行perf，iotop，ltrace工具添加权限（以HwHiAiUser为例）。
    /usr/bin/msprof_data_collection.sh set-sudoers HwHiAiUser

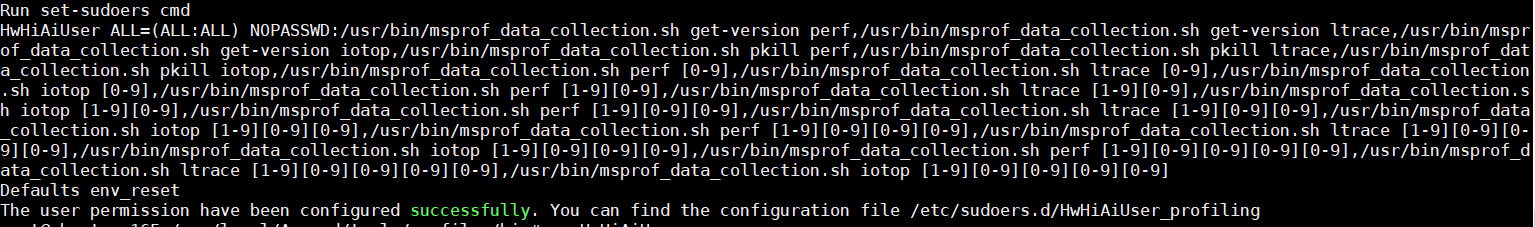

    执行完成后，返回如图1所示表示执行成功。

    msprof_data_collection.sh会使用户获得sudo权限，存在提权风险，请谨慎使用，配置并完成采集操作后，请执行步骤5清除sudo权限。

    图1 执行成功
  5. 基于安全考虑，配置完以上权限并完成相应Profiling采集后，请进行配置清除操作。
    1. 检查是否存在“/etc/sudoers.d/{安装用户名}_profiling”文件，若存在则删除该文件。
    2. 检查是否存在“/etc/sudoers”文件，若存在则：
      打开“/etc/sudoers”文件：
      chmod u+w /etc/sudoers
vi /etc/sudoers
      删除文件内如下内容：
      huawei ALL=(ALL:ALL) NOPASSWD:/usr/bin/msprof_data_collection.sh get-version perf,/usr/bin/msprof_data_collection.sh get-version ltrace,/usr/bin/msprof_data_collection.sh get-version iotop,/usr/bin/msprof_data_collection.sh pkill perf,/usr/bin/msprof_data_collection.sh pkill ltrace,/usr/bin/msprof_data_collection.sh pkill iotop,/usr/bin/msprof_data_collection.sh perf [0-9],/usr/bin/msprof_data_collection.sh ltrace [0-9],/usr/bin/msprof_data_collection.sh iotop [0-9],/usr/bin/msprof_data_collection.sh perf [1-9][0-9],/usr/bin/msprof_data_collection.sh ltrace [1-9][0-9],/usr/bin/msprof_data_collection.sh iotop [1-9][0-9],/usr/bin/msprof_data_collection.sh perf [1-9][0-9][0-9],/usr/bin/msprof_data_collection.sh ltrace [1-9][0-9][0-9],/usr/bin/msprof_data_collection.sh iotop [1-9][0-9][0-9],/usr/bin/msprof_data_collection.sh perf [1-9][0-9][0-9][0-9],/usr/bin/msprof_data_collection.sh ltrace [1-9][0-9][0-9][0-9],/usr/bin/msprof_data_collection.sh iotop [1-9][0-9][0-9][0-9],/usr/bin/msprof_data_collection.sh perf [1-9][0-9][0-9][0-9][0-9],/usr/bin/msprof_data_collection.sh ltrace [1-9][0-9][0-9][0-9][0-9],/usr/bin/msprof_data_collection.sh iotop [1-9][0-9][0-9][0-9][0-9]
Defaults env_reset
    3. 执行以下命令取消“/etc/sudoers”文件的写权限：
      chmod u-w /etc/sudoers
父主题： 附录
