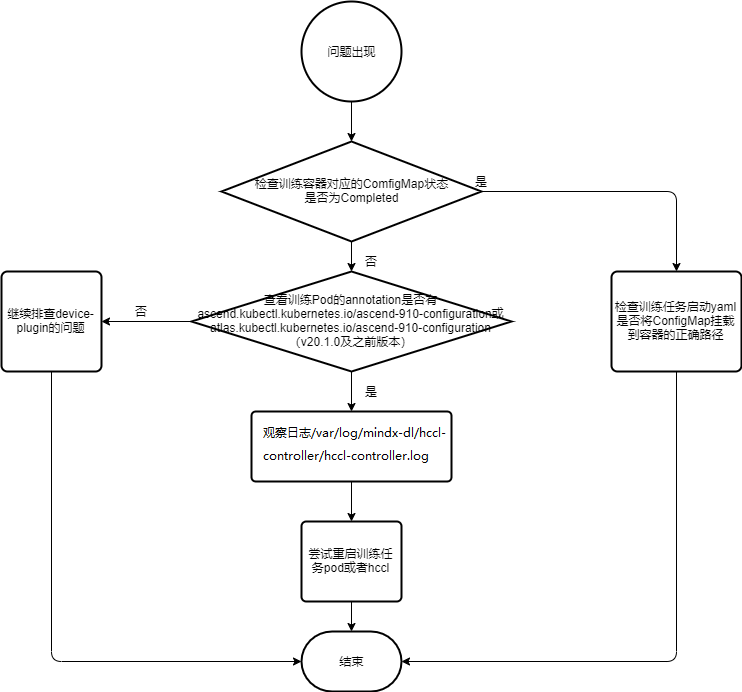

定位思路

HCCL-Controller主要负责生成训练任务的通讯配置文件hccl.json。

如果HCCL-Controller没有正常启动或者启动后，没有在训练任务Pod里面生成hccl.json，可以按照以下思路排查。

1. 在“/home”路径下执行以下命令，查看HCCL-Controller的Pod状态。

   kubectl get cm

   如果HCCL-Controller的Pod的状态是正常的，但是训练任务的Pod对应ConfigMap状态是Completed。

   回显示例如下：

   NAME                     DATA   AGE
   resnet1-1-svc            3      24h
   rings-config-resnet1-1   1      24h
   root@ubuntu:/home# kubectl describe cm rings-config-resnet1-1
   Name:         rings-config-resnet1-1
   Namespace:    default
   Labels:       ring-controller.atlas=ascend-910
   Annotations:  kubectl.kubernetes.io/last-applied-configuration:
                   {"apiVersion":"v1","data":{"hccl.json":"{\n    \"status\":\"initializing\"\n}\n"},"kind":"ConfigMap","metadata":{"annotations":{},"labels"...

   Data
   ====
   hccl.json:
   ----
   {"group_list":[{"instance_list":[{"devices":[{"device_id":"0","device_ip":"192.168.100.101"}],"pod_name":"0","server_id":"90.xxx"}],
   "group_name":"default-test","device_count":"1","instance_count":"1"}],
   "status":"completed","group_count":"1"}
   Events:  <none>

   如上所示说明ConfigMap正常生成了，需要检查启动yaml中是否正确挂载ConfigMap到容器的固定路径下，参考配置如下，此处省略了无关部分。

   apiVersion: v1
   kind: ConfigMap
   metadata:
     name: rings-config-resnet
     namespace: kube-system
     labels:
       ring-controller.atlas: ascend-910
   data:
     hccl.json: |
       {
           "status":"initializing"
       }
   ---
   apiVersion: batch.volcano.sh/v1alpha1
   kind: Job
   ...
   spec:
     ...
     tasks:
     - name: "default-test"
         ...
         spec:
           containers:
             ...
             volumeMounts:
             - name: ascend-910-config
               mountPath: /user/serverid/devindex/config
           volumes:
           - name: ascend-910-config
             configMap:
              name: rings-config-resnet

2. 如果训练任务的Pod对应ConfigMap状态是initializing，如下所示：

   root@ubuntu:/home# kubectl get cm -A
   NAMESPACE        NAME                                 DATA   AGE
   default          resnet1-1-svc                        3      13s
   default          rings-config-resnet1-1               1      13s
   kube-public      cluster-info                         4      22h
   kube-system      calico-config                        4      22h
   kube-system      coredns                              1      22h
   ...
   root@ubuntu:/home# kubectl describe cm  rings-config-resnet1-1
   Name:         rings-config-resnet1-1
   Namespace:    default
   Labels:       ring-controller.atlas=ascend-910
   Annotations:  kubectl.kubernetes.io/last-applied-configuration:
                 ...

   Data
   ====
   hccl.json:
   ----
   {"status":"initializing"}
   Events:  <none>

3. 继续查看训练任务Pod的Annotations字段是否有ascend.kubectl.kubernetes.io/ascend-910-configuration，如果没有，那么就需要排查Ascend Device plugin的问题，一般可能是启动参数配置了“-volcanoType=false”，或者NPU芯片的device_ip没有配置。查看hccl.json文件没有生产寻找处理方法。

   root@ubuntu:/home# kubectl describe pod resnet1-1-default-test-0
   Name:         resnet1-1-default-test-0
   Namespace:    default
   Priority:     0
   Node:         ubuntu/90.91.58.xxx
   Start Time:   Thu, 24 Dec 2020 14:12:50 -0500
   Labels:       app=tf
                 ring-controller.atlas=ascend-910
                 volcano.sh/job-name=resnet1-1
                 volcano.sh/job-namespace=default
   Annotations:  atlas.kubectl.kubernetes.io/ascend-910-configuration:
                   {"pod_name":"0","server_id":"xx.xx.xx.xx","devices":[{"device_id":"0","device_ip":"192.168.100.102"}]}
                 cni.projectcalico.org/podIP: 192.168.245.221/32
                 cni.projectcalico.org/podIPs: 192.168.245.221/32
                 huawei.com/Ascend910: Ascend910-0
                 predicate-time: 18446744073709551615
                 scheduling.k8s.io/group-name: resnet1-1
                 volcano.sh/job-name: resnet1-1
                 volcano.sh/job-version: 0
                 volcano.sh/task-spec: default-test
   ...

4. 如果有上面的Annotations，还可以观察日志：“/var/log/mindx-dl/hccl-controller/hccl-controller.log”，也可以尝试重启Hccl-Controller和训练任务，如果不能解决问题，请联系华为工程师。
