vllm_npu_0.4.2版本（即：vLLM 0.4.2版本昇腾框架适配代码）中修改了attention、engine、executor、model_executor、usage、worker六个模块，与vLLM原生框架中的同名模块一一对应进行热替换适配。vllm_npu_0.4.2版本可参考参考代码制作。

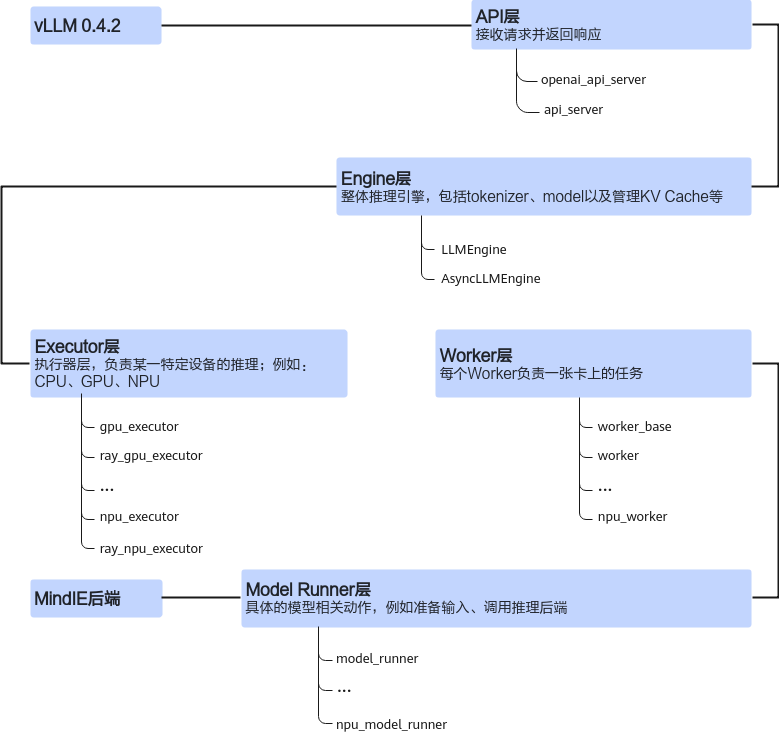

图1 vLLM 0.4.2版本架构图

表1 各模块修改内容介绍
模块	简介
attention模块	该模块重写了vLLM框架中的AttentionBackend类，对昇腾环境下对接MindIE LLM所需要的attention计算数据以及KV Cache的shape等关键信息进行了定义，并在该模块的初始化文件中对原框架的get_atten_backend函数进行了热替换，从而使得框架在昇腾环境下会运行该模块中的attention后端类。
engine模块	该模块重写了vLLM引擎的from_engine_args函数，vLLM 0.4.2版本中引擎会通过该类方法进行实例化，并在其中根据运行环境信息选择对应的不同executor；这里我们加入了新的判断逻辑分支，当检测到运行在昇腾环境下时，引擎会选择vllm_npu补丁包中定义的AscendExecutor和RayAscendExecutor类分别去进行单卡推理和多卡推理。另外，这里对vLLM原生框架的离线同步推理引擎LLMEngine和在线异步推理引擎AsyncLLMEngine的from_engine_args函数分别进行了重写替换，替换操作发生在该模块的初始化文件中。
executor模块	该模块中主要实现了四个executor类，其中AscendExecutor和AscendExecutorAsync用于单卡环境的同步和异步调用模式下的推理，RayAscendExecutor和RayAscendExecutorAsync用于多卡ray分布式环境的同步和异步调用模式下的推理。此外，在ray_utils.py中对initialize_ray_cluster函数进行了重写，主要是因为在昇腾的npu环境下ray无法自动识别到npu的数量，因此需要手动指定。
model_executor模块	该模块为实际对接MindIE LLM模型推理与后处理的位置，其中包括layers模块和models模块，分别对应后处理和模型推理。 layers模块：该模块编写实现了AscendSampler类，进行vLLM原生框架的数据结构与模型仓底层数据结构之间的对接工作；具体实现代码如•layers模块实现代码：所示。 models模块：该模块编写实现了MindIELlmWrapper类，在该类中会对MindIE LLM提供的GeneratorTorch统一接口进行实例化操作，并从vLLM原生框架的数据结构中拆解出MindIE LLM所需要的模型推理参数，从而传给统一接口调用模型推理服务；另外，在进行warmup操作时使用的fake data构造操作也在该类中实现；具体实现代码如•layers模块实现代码：所示。
usage模块	该模块中的UsageMessage类的_report_usage_once成员函数进行了重写，修改了其中的torch.cuda.get_device_properties函数的使用方式，该函数目前在昇腾环境上的使用方式和GPU环境上有所差异。
worker模块	该模块实现了AscendWorker类，以供executor模块中的executor类进行调用；实现了AscendModelRunner类在AscendWorker中进行调用。替换原生框架中CacheEngine的_allocate_kv_cache函数，主要是对生成kv_cache的数据格式进行了修改，从Torch.tensor修改为Tuple[torch.Tensor, torch.Tensor]。 AscendModelRunner类继承自原生框架中ModelRunner类，主要是为了对原生的load_model，execute_model和profile_run函数进行重写：vLLM新版本中执行模型调用时分为了先调用模型生成hidden_states，再使用一个process处理hidden_states得到logits，再进行最后的sample操作得到结果；而在MindIE模型仓中前两步操作是通过模型调用一步完成的，因此在这里进行了修改；profile_run函数的修改主要是为了构造warmup时使用的fake data。

layers模块实现代码：

class AscendSampler(nn.Module):
    def __init__(self, mindie_model):
        super().__init__()
        self.mindie_model = mindie_model
        self.include_gpu_probs_tensor = False
    def forward(
        self,
        logits: torch.Tensor,
        sampling_metadata: SamplingMetadata,
    ) -> Optional[SamplerOutput]:
        _, vocab_size = logits.shape
        mindie_sampling_data, mindie_sampling_param = self.construct_data(sampling_metadata, vocab_size)
        probs = torch.softmax(logits, dim=-1, dtype=torch.float)
        logprobs = torch.log_softmax(logits, dim=-1, dtype=torch.float)
        next_tokens = self.mindie_model.sample(
            logits,
            sampling_data=mindie_sampling_data,
            sampling_param=mindie_sampling_param,
        )

        sample_results, maybe_sampled_tokens_tensor = recover_data(
            sampling_metadata=sampling_metadata,
            sampled_tokens=next_tokens,
            logprobs=logprobs,
            include_gpu_probs_tensor=self.include_gpu_probs_tensor,
        )
        if self.include_gpu_probs_tensor:
            if maybe_sampled_tokens_tensor is None:
                raise RuntimeError("maybe_sampled_tokens_tensor is None")
            on_device_tensors = (probs, logprobs, maybe_sampled_tokens_tensor)
        else:
            on_device_tensors = None
        # Get the logprobs query results.
        prompt_logprobs, sample_logprobs = _get_logprobs(
            logprobs, sampling_metadata, sample_results)
        return _build_sampler_output(sample_results,
                                     sampling_metadata,
                                     prompt_logprobs,
                                     sample_logprobs,
                                     on_device_tensors=on_device_tensors)
    def construct_data(
        self,
        sampling_metadata: SamplingMetadata,
        vocab_size: int,
    ) -> Tuple[SamplingData, SamplingParam]:
        all_input_tokens: List[List[int]] = []
        prompt_tokens: List[List[int]] = []
        output_tokens: List[List[int]] = []
        top_ks: List[int] = []
        temperatures: List[float] = []
        top_ps: List[float] = []
        min_ps: List[float] = []
        presence_penalties: List[float] = []
        frequency_penalties: List[float] = []
        repetition_penalties: List[float] = []
        sampling_seeds: List[int] = []
        sample_indices: List[int] = []
        do_samples: List[bool] = []  # To Do
        do_penalties = False
        do_top_p_top_k = False
        do_min_p = False
        greedy_flag = False

        if sampling_metadata.seq_groups is None:
            raise RuntimeError("sampling_metadata.seq_group is None, no data received.")
        for seq_group in sampling_metadata.seq_groups:
            do_samples.append(seq_group.do_sample)
            seq_ids = seq_group.seq_ids
            sampling_params = seq_group.sampling_params
            temperature = sampling_params.temperature
            p = sampling_params.presence_penalty
            f = sampling_params.frequency_penalty
            r = sampling_params.repetition_penalty
            top_p = sampling_params.top_p
            min_p = sampling_params.min_p
            is_greedy = sampling_params.sampling_type == SamplingType.GREEDY
            seed = sampling_params.seed
            if seed is None:
                if is_greedy:
                    seed = 0
                else:
                    lo, hi = torch.iinfo(torch.long).min, torch.iinfo(torch.long).max
                    seed = random.randint(lo, hi)
            if is_greedy:
                greedy_flag = True
            # k should not be greater than the vocab size.
            top_k = min(sampling_params.top_k, vocab_size)
            top_k = vocab_size if top_k == -1 else top_k
            if temperature < _SAMPLING_EPS:
                temperature = 1.0
            if not do_top_p_top_k and (top_p < 1.0 - _SAMPLING_EPS
                                       or top_k != vocab_size):
                do_top_p_top_k = True
            if not do_min_p and min_p > _SAMPLING_EPS:
                do_min_p = True
            if not do_penalties:
                if abs(p) >= _SAMPLING_EPS:
                    do_penalties = True
                elif abs(f) >= _SAMPLING_EPS:
                    do_penalties = True
                elif abs(r - 1.0) >= _SAMPLING_EPS:
                    do_penalties = True
            is_prompt = seq_group.is_prompt
            if (seq_group.is_prompt
                    and sampling_params.prompt_logprobs is not None):
                # For tokens in the prompt that we only need to get
                # their logprobs
                query_len = seq_group.query_len
                if query_len is None:
                    raise RuntimeError("query_len is None")
                prefill_len = len(seq_group.prompt_logprob_indices)
                temperatures += [temperature] * prefill_len
                sampling_seeds += [seed] * prefill_len
                top_ps += [top_p] * prefill_len
                top_ks += [top_k] * prefill_len
                min_ps += [min_p] * prefill_len
                presence_penalties += [0] * prefill_len
                frequency_penalties += [0] * prefill_len
                repetition_penalties += [1] * prefill_len
                prompt_tokens.extend([] for _ in range(prefill_len))
                output_tokens.extend([] for _ in range(prefill_len))
                all_input_tokens.extend([] for _ in range(prefill_len))
            if seq_group.do_sample:
                sample_lens = len(seq_group.sample_indices)
                if sample_lens != len(seq_ids):
                    raise ValueError("sample_lens != len(seq_ids)")
                for seq_id in seq_ids:
                    seq_data = seq_group.seq_data[seq_id]
                    prompt_tokens.append(seq_data.prompt_token_ids)
                    output_tokens.append(seq_data.output_token_ids)
                    all_input_tokens.append(seq_data.prompt_token_ids + seq_data.output_token_ids)
                temperatures += [temperature] * len(seq_ids)
                sampling_seeds += [seed] * len(seq_ids)
                top_ps += [top_p] * len(seq_ids)
                top_ks += [top_k] * len(seq_ids)
                min_ps += [min_p] * len(seq_ids)
                presence_penalties += [p] * len(seq_ids)
                frequency_penalties += [f] * len(seq_ids)
                repetition_penalties += [r] * len(seq_ids)
        repetition_penalties = np.array(repetition_penalties, dtype=np.float32)
        frequency_penalties = np.array(frequency_penalties, dtype=np.float32)
        presence_penalties = np.array(presence_penalties, dtype=np.float32)
        temperatures = np.array(temperatures, dtype=np.float32)
        top_ks = np.array(top_ks, dtype=np.int32)
        top_ps = np.array(top_ps, dtype=np.float32)
        sampling_seeds = np.array(sampling_seeds)
        do_samples = np.array(do_samples)
        max_tokens_len = max([len(tokens) for tokens in all_input_tokens], default=0)
        padded_all_input_tokens = [
            tokens + [vocab_size] * (max_tokens_len - len(tokens))
            for tokens in all_input_tokens
        ]
        padded_all_input_tokens = np.array(padded_all_input_tokens, dtype=np.int32)
        output_max_len = max([len(tokens) for tokens in output_tokens], default=0)
        padded_output_tokens = [
            tokens + [vocab_size] * (output_max_len - len(tokens))
            for tokens in output_tokens
        ]
        padded_output_tokens = np.array(padded_output_tokens, dtype=np.int32)
        all_input_ids_tensor = _to_tensor(
            padded_all_input_tokens,
            torch.int32
        ) if padded_all_input_tokens is not None else None
        output_ids_tensor = _to_tensor(
            padded_output_tokens,
            torch.int32
        ) if padded_output_tokens is not None else None
        mindie_sampling_data = SamplingData(
            all_input_ids=all_input_ids_tensor,
            output_ids=output_ids_tensor
        )
        if greedy_flag:
            mindie_sampling_param = None
        else:
            mindie_sampling_param = SamplingParam.from_numpy(
                repetition_penalty=repetition_penalties,
                frequency_penalty=frequency_penalties,
                presence_penalty=presence_penalties,
                temperature=temperatures,
                top_k=top_ks,
                top_p=top_ps,
                seed=sampling_seeds,
                do_sample=do_samples,
                to_tensor=_to_tensor,
            )
        return (mindie_sampling_data, mindie_sampling_param)
def recover_data(
    sampling_metadata: SamplingMetadata,
    sampled_tokens: np.ndarray,
    logprobs: torch.Tensor,
    include_gpu_probs_tensor: bool,
) -> Tuple[SampleResultType, Optional[torch.Tensor]]:
    categorized_seq_group_ids: Dict[SamplingType,
                                    List[int]] = {t: []
                                                  for t in SamplingType}
    categorized_sample_indices = sampling_metadata.categorized_sample_indices
    for i, seq_group in enumerate(sampling_metadata.seq_groups):
        sampling_params = seq_group.sampling_params
        sampling_type = sampling_params.sampling_type
        categorized_seq_group_ids[sampling_type].append(i)
    sample_results_dict: Dict[int, Tuple[List[int], List[int]]] = {}
    sample_metadata = {}
    # Create output tensor for sampled token ids.
    if include_gpu_probs_tensor:
        sampled_token_ids_tensor = torch.empty(logprobs.shape[0],
                                               1,
                                               dtype=torch.long,
                                               device=logprobs.device)
    else:
        sampled_token_ids_tensor = None
    for sampling_type in SamplingType:
        sample_indices = categorized_sample_indices[sampling_type][:, 0]
        num_tokens = len(sample_indices)
        if num_tokens == 0:
            continue
        seq_group_id = categorized_seq_group_ids[sampling_type]
        seq_groups = [sampling_metadata.seq_groups[i] for i in seq_group_id]
        sample_metadata[sampling_type] = (seq_group_id, seq_groups)
    for sampling_type in SamplingType:
        if sampling_type not in sample_metadata:
            continue
        (seq_group_id, seq_groups) = sample_metadata[sampling_type]
        if sampling_type in (SamplingType.GREEDY, SamplingType.RANDOM, SamplingType.RANDOM_SEED):
            sample_results = normal_wrap(seq_groups, sampled_tokens)
        elif sampling_type == SamplingType.BEAM:
            sample_results = beam_wrap(seq_groups, sampled_tokens)
        sample_results_dict.update(zip(seq_group_id, sample_results))
    sample_results = [
        sample_results_dict.get(i, ([], []))
        for i in range(len(sampling_metadata.seq_groups))
    ]
    return sample_results, sampled_token_ids_tensor
def normal_wrap(
    selected_seq_groups: List[SequenceGroupToSample],
    samples: np.ndarray,
):
    samples = samples.tolist()
    sample_idx = 0
    results: SampleResultType = []
    for seq_group in selected_seq_groups:
        if not seq_group.do_sample:
            results.append(([], []))
            continue
        seq_ids = seq_group.seq_ids
        num_parent_seqs = len(seq_ids)
        parent_ids = list(range(num_parent_seqs))
        next_token_ids = [samples[sample_idx]]
        results.append((next_token_ids, parent_ids))
        sample_idx += num_parent_seqs
    return results

另外，该模块中重写了vLLM框架的get_model和get_architecture_class_name函数，从而将MindIELlmWrapper类引入到vLLM框架中。

models模块实现代码：

class MindIELlmWrapper(nn.Module):
    def __init__(self, mindie_model_config, linear_method=None, lora_config=None):
        super(MindIELlmWrapper, self).__init__()

        self.mindie_model_config = mindie_model_config
        self.rank = mindie_model_config['rank']
        self.local_rank = mindie_model_config['local_rank']
        self.npu_id = self.local_rank
        self.world_size = mindie_model_config['world_size']
        self.mindie_model = None
        self.sampler = None
    def forward(
            self,
            input_ids: torch.Tensor,
            positions: torch.Tensor,
            kv_caches: List[KVCache],
            attn_metadata: AttentionMetadata,
    ) -> torch.Tensor:
        is_prompt = attn_metadata.num_prefill_tokens > 0

        if kv_caches[0][0] is None:
            kv_caches, block_tables, slots = self.create_dummy_kv_cache(attn_metadata, input_ids)
        else:
            if is_prompt:
                block_tables = torch.tensor([0], dtype=torch.int32, device="npu")
            else:
                block_tables = attn_metadata.decode_metadata.block_tables
            slots = attn_metadata.slot_mapping
        if is_prompt:
            input_lengths = attn_metadata.prefill_metadata.seq_lens_tensor.to(torch.int32)
            max_seq_len = int(attn_metadata.prefill_metadata.seq_lens_tensor.max())
            lm_head_indices = (attn_metadata.prefill_metadata.seq_lens_tensor.cumsum(dim=-1) - 1).to(torch.int64)
        else:
            input_lengths = attn_metadata.decode_metadata.seq_lens_tensor
            max_seq_len = attn_metadata.decode_metadata.max_seq_len
            lm_head_indices = None

        logits = self.mindie_model.forward_tensor(input_ids, positions, is_prompt, kv_caches, block_tables, slots,
                                input_lengths, max_seq_len, lm_head_indices)
        return logits
    def compute_logits(self, hidden_states: torch.Tensor,
                       sampling_metadata: SamplingMetadata) -> torch.Tensor:
        return hidden_states
    def sample(
        self,
        logits: torch.Tensor,
        sampling_metadata: SamplingMetadata,
    ) -> Optional[SamplerOutput]:
        # hidden_states is logits
        next_tokens = self.sampler(logits, sampling_metadata)
        return next_tokens
    def load_weights(self,
                     model_name_or_path: str,
                     cache_dir: Optional[str] = None,
                     load_format: str = "auto",
                     revision: Optional[str] = None):
        if load_format not in ['auto', 'safetensors', 'pt']:
            raise ValueError('load-format support [safetensors, pt]')
        self.weight_dtype = torch.get_default_dtype()
        torch.set_default_dtype(torch.float32)
        self.mindie_model = GeneratorTorch(self.mindie_model_config)
        self.sampler = AscendSampler(self.mindie_model)
        torch.set_default_dtype(self.weight_dtype)
    # when warmup, create dummy kvcache, block_tables, slot_mapping
    def create_dummy_kv_cache(self, attn_metadata, input_ids):
        dummy_block_num = 1
        dummy_block_size = 128
        model_runner = self.mindie_model.model_wrapper.model_runner
        kv_cache = [
            (
                torch.empty(
                    (dummy_block_num, dummy_block_size, model_runner.num_kv_heads, model_runner.head_size),
                    dtype=self.weight_dtype,
                    device="npu",
                ),
                torch.empty(
                    (dummy_block_num, dummy_block_size, model_runner.num_kv_heads, model_runner.head_size),
                    dtype=self.weight_dtype,
                    device="npu",
                ),
            )
            for _ in range(model_runner.num_layers)
        ]
        max_s = max(attn_metadata.prefill_metadata.seq_lens_tensor)
        max_need_block = math.ceil(max_s / dummy_block_size)
        batch_size = len(attn_metadata.prefill_metadata.seq_lens_tensor)
        block_tables = torch.zeros(batch_size, max_need_block, dtype=int, device="npu")
        slot = [i for i in range(dummy_block_size)]
        slots = []
        warm_up_len = len(input_ids)
        while warm_up_len > 0:
            if warm_up_len > dummy_block_size:
                slots.extend(slot)
                warm_up_len -= dummy_block_size
            else:
                slots.extend(slot[:warm_up_len])
                warm_up_len = 0
        slots = torch.tensor(slots, dtype=torch.long, device="npu")
        return kv_cache, block_tables, slots

除了上述的六个模块的适配外，还有一些主模块外的Python文件里的函数需要热替换，包括config.py中的DeviceConfig类中我们引入了NPU作为device_type，在utils.py文件中我们引入了is_ascend()函数用于检测当前运行环境是否为昇腾环境。最后，在npu_adaptor.py，我们对vLLM原框架中导入的一些昇腾环境下不具备的包（例如预编译的cuda算子、triton等）进行了屏蔽操作。

多模态模型Qwen-VL支持：

为了适配多模态模型Qwen-VL的推理，需要对vLLM框架中离线推理接口类LLM的generate函数进行修改，以及对AscendModelRunner中构造warmup假数据的部分进行修改，并且自己定义了Qwen-VL的tokenizer需要的多模态输入数据格式，同时定义了一个新的MindIETokenizer类来对接MindIE LLM的前处理，具体的适配细节如下：

首先需要在vllm_npu包里新建entrypoints和transformers_utils两个模块和一个sequence.py文件，entrypoints模块下新建__init__.py和llm.py两个文件，transformers_utils模块下新建__init__.py和mindie_tokenizer.py两个文件。

在vllm_npu/sequence.py文件中添加如下新类用于定义Qwen-VL的多模态数据：

from typing import Dict, List
class MultiModalData:
    """Multi modal input for MindIE LLM.
    Args:
        data_list: List of input data in the format of dict. For example:
        [
            {"image": url_of_image1},
            {"image": url_of_image1},
            {"text": input_prompt1},
            {"text": input_prompt1}
        ]
    """
    def __init__(self, data_list: List[Dict[str, str]]):
        self.data_list = data_list

在vllm_npu/transformers_utils/mindie_tokenizer.py文件中引入了新类MindIETokenizer来对接MindIE LLM的前处理：

from typing import List, Optional
from transformers import PreTrainedTokenizer
from vllm.transformers_utils.tokenizer_group.base_tokenizer_group import (
    BaseTokenizerGroup)
from vllm.transformers_utils.tokenizer import get_lora_tokenizer, get_lora_tokenizer_async
from vllm.lora.request import LoRARequest
from atb_llm.runner.tokenizer_wrapper import TokenizerWrapper
class MindIETokenizer(BaseTokenizerGroup):
    """A group of tokenizers that can be used for LoRA adapters."""
    def __init__(self, model_path: str):
        self.tokenizer_wrapper = TokenizerWrapper(model_path)
        self.tokenizer = self.tokenizer_wrapper.tokenizer
        self.lora_tokenizers = None
        self.enable_lora = False
    def ping(self) -> bool:
        """Check if the tokenizer group is alive."""
        return True
    def get_max_input_len(self,
                          lora_request: Optional[LoRARequest] = None
                          ) -> Optional[int]:
        """Get the maximum input length for the LoRA request."""
        return 0
    def encode(self,
               prompt: str,
               request_id: Optional[str] = None,
               lora_request: Optional[LoRARequest] = None) -> List[int]:
        tokenizer = self.get_lora_tokenizer(lora_request)
        return tokenizer.encode(prompt)
    async def encode_async(
            self,
            prompt: str,
            request_id: Optional[str] = None,
            lora_request: Optional[LoRARequest] = None) -> List[int]:
        tokenizer = await self.get_lora_tokenizer_async(lora_request)
        return tokenizer.encode(prompt)
    def get_lora_tokenizer(
            self,
            lora_request: Optional[LoRARequest] = None
    ) -> "PreTrainedTokenizer":
        if not lora_request or not self.enable_lora:
            return self.tokenizer
        if lora_request.lora_int_id not in self.lora_tokenizers:
            tokenizer = (get_lora_tokenizer(
                lora_request, **self.tokenizer_config) or self.tokenizer)
            self.lora_tokenizers.put(lora_request.lora_int_id, tokenizer)
            return tokenizer
        else:
            return self.lora_tokenizers.get(lora_request.lora_int_id)
    async def get_lora_tokenizer_async(
            self,
            lora_request: Optional[LoRARequest] = None
    ) -> "PreTrainedTokenizer":
        if not lora_request or not self.enable_lora:
            return self.tokenizer
        if lora_request.lora_int_id not in self.lora_tokenizers:
            tokenizer = (await get_lora_tokenizer_async(
                lora_request, **self.tokenizer_config) or self.tokenizer)
            self.lora_tokenizers.put(lora_request.lora_int_id, tokenizer)
            return tokenizer
        else:
            return self.lora_tokenizers.get(lora_request.lora_int_id)

在vllm_npu/entrypoints/llm.py文件里重新定义generate函数，引入多模态数据的输入接口：

import torch
from typing import List, Optional, Union
from vllm.lora.request import LoRARequest
from vllm.outputs import RequestOutput
from vllm.sampling_params import SamplingParams
from vllm.transformers_utils.detokenizer import Detokenizer
from vllm_npu.transformers_utils import MindIETokenizer
from vllm_npu.sequence import MultiModalData

def generate(
    self,
    prompts: Optional[Union[str, List[str]]] = None,
    sampling_params: Optional[Union[SamplingParams,
                                    List[SamplingParams]]] = None,
    prompt_token_ids: Optional[List[List[int]]] = None,
    use_tqdm: bool = True,
    lora_request: Optional[LoRARequest] = None,
    multi_modal_data_list: Optional[List[MultiModalData]] = None,
) -> List[RequestOutput]:
    """Generates the completions for the input prompts.
    Args:
        prompts: A list of prompts to generate completions for.
        sampling_params: The sampling parameters for text generation. If
            None, we use the default sampling parameters.
            When it is a single value, it is applied to every prompt.
            When it is a list, the list must have the same length as the
            prompts and it is paired one by one with the prompt.
        prompt_token_ids: A list of token IDs for the prompts. If None, we
            use the tokenizer to convert the prompts to token IDs.
        use_tqdm: Whether to use tqdm to display the progress bar.
        lora_request: LoRA request to use for generation, if any.
        multi_modal_data_list: List of Multi modal data. Each element in this list
        is organized in the form of List[Dict[str, str]]
    Returns:
        A list of `RequestOutput` objects containing the generated
        completions in the same order as the input prompts.
    """
    if prompts is None and prompt_token_ids is None and multi_modal_data_list is None:
        raise ValueError("Either prompts or prompt_token_ids of multi_modal_data must be "
                            "provided.")
    if self.llm_engine.model_config.skip_tokenizer_init \
        and prompts is not None:
        raise ValueError("prompts must be None if skip_tokenizer_init "
                            "is True")
    if isinstance(prompts, str):
        # Convert a single prompt to a list.
        prompts = [prompts]
    if (prompts is not None and prompt_token_ids is not None
            and len(prompts) != len(prompt_token_ids)):
        raise ValueError("The lengths of prompts and prompt_token_ids "
                            "must be the same.")
    if multi_modal_data_list and self.llm_engine.tokenizer is None:
        self.llm_engine.tokenizer = MindIETokenizer(self.llm_engine.model_config.model)
        self.llm_engine.detokenizer = Detokenizer(self.llm_engine.tokenizer)
        self.llm_engine.output_processor.detokenizer = self.llm_engine.detokenizer
    if prompts is not None:
        num_requests = len(prompts)
    elif multi_modal_data_list is not None:
        num_requests = len(multi_modal_data_list)
    else:
        assert prompt_token_ids is not None
        num_requests = len(prompt_token_ids)
    if sampling_params is None:
        # Use default sampling params.
        sampling_params = SamplingParams()
    elif isinstance(sampling_params,
                    list) and len(sampling_params) != num_requests:
        raise ValueError("The lengths of prompts and sampling_params "
                            "must be the same.")
    # Add requests to the engine.
    for i in range(num_requests):
        prompt = prompts[i] if prompts is not None else None
        token_ids = None if prompt_token_ids is None else prompt_token_ids[
            i]
        if multi_modal_data_list:
            token_ids = self.llm_engine.tokenizer.tokenizer_wrapper.tokenize(
                multi_modal_data_list[i].data_list).tolist()
            # print(token_ids)
        self._add_request(
            prompt,
            sampling_params[i]
            if isinstance(sampling_params, list) else sampling_params,
            token_ids,
            lora_request=lora_request,
            # Get ith image while maintaining the batch dim.
            multi_modal_data=None,
        )
    outputs = self._run_engine(use_tqdm)
    for output in outputs:
        token_ids = output.outputs[0].token_ids
        token_ids_tensor = torch.tensor(token_ids, dtype=torch.int64)
        mindie_generated_text = self.llm_engine.tokenizer.tokenizer.decode(token_ids_tensor, False)
        output.outputs[0].text = mindie_generated_text
    return outputs

修改vllm_npu/worker/ascend_model_runner.py文件，将其中从MindIE LLM框架里导入的_prepare_fake_inputs去掉，重新定义该函数如下：

def _prepare_fake_inputs(
        seq_len: int, model_config: ModelConfig):
    """Prepare fake inputs for profile run."""
    if getattr(model_config.hf_config, "visual", None) is not None:
        img_start_id = model_config.hf_config.visual["image_start_id"]
        img_end_id = img_start_id + 1
        img_patch_id = img_start_id + 2
        fake_img_token_ids = [24669, 220, 16, 25, 151857, 120, 121] + \
            [img_patch_id] * 254 + [img_end_id, 198]
        img_token_nums = len(fake_img_token_ids)
        if seq_len < img_token_nums:
            raise ValueError(f"The number of max_model_len/max_num_seqs is smaller than the img_token_nums({img_token_nums}) of Qwen-VL.")
        prompt_tokens = fake_img_token_ids + \
            [0] * (seq_len - img_token_nums)
    else:
        prompt_tokens = [0] * seq_len
    fake_image_input = None
    return SequenceData(prompt_tokens), fake_image_input

另外，调用该函数部分的代码更改为：

seq_data, fake_multi_modal_input = _prepare_fake_inputs(
                seq_len, self.model_config)

在vllm_npu/entrypoints/__init__.py中进行generate函数的替换：

from vllm_npu.entrypoints.llm import generate
import vllm.entrypoints.llm as vllm_entry_llm
vllm_entry_llm.LLM.generate = generate

在vllm_npu/transformers_utils/__init__.py中进行新类的导入：

from .mindie_tokenizer import MindIETokenizer

在vllm_npu/__init__.py文件中添加新模块的导入：

import vllm_npu.transformers_utils
import vllm_npu.entrypoints
import vllm.sequence as v_sequence

v_sequence.MultiModalData = MultiModalData

详细说明
