【优先级】高
【描述】算子实现中对矩阵乘结果进行量化计算时，可将量化参数搬运到C2PIPE2GM（Fixpipe Buffer）上，调用一次Fixpipe接口实现矩阵乘结果的量化计算。相比于将矩阵乘的结果从CO1（L0C）搬运到GM，再从GM搬运到UB，在UB进行量化计算的过程，数据搬运的次数更少，内存使用效率更高。
本性能优化手段仅针对

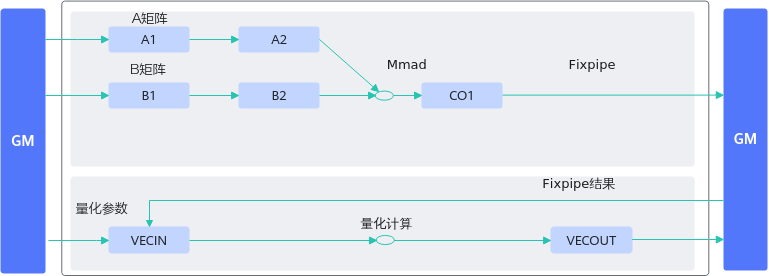

图1 反例数据流图

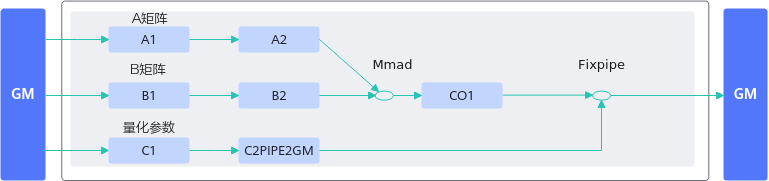

图2 正例数据流图
【反例】
对矩阵乘结果进行量化计算的过程如下：
- 将矩阵乘的结果从CO1搬运到workspace上；
- 再从workspace搬运到UB上；
- 将量化参数搬运到UB上，和矩阵乘的结果一起在UB上进行一系列量化计算；
- 将最终量化结果从UB搬运到GM上。
相比于正确示例多增加了CO1->workspace、workspace->UB的搬运过程和量化的vector计算。
...
// 该样例仅做示例说明，非完整代码，省略了部分同步控制代码
public:
__aicore__ inline KernelSample()
{
aSize = m * k;
bSize = k * n;
cSize = m * n;
}
__aicore__ inline void Init(__gm__ uint8_t *a, __gm__ uint8_t *b, __gm__ uint8_t *c, __gm__ uint8_t *deqTensor)
{
aGM.SetGlobalBuffer((__gm__ half *)a);
bGM.SetGlobalBuffer((__gm__ half *)b);
cGM.SetGlobalBuffer((__gm__ float *)c);
deqGM.SetGlobalBuffer((__gm__ half *)deqTensor);
pipe.InitBuffer(inQueueA1, 1, aSize * sizeof(half));
pipe.InitBuffer(inQueueA2, 1, aSize * sizeof(half));
pipe.InitBuffer(inQueueB1, 1, bSize * sizeof(half));
pipe.InitBuffer(inQueueB2, 2, bSize * sizeof(half));
pipe.InitBuffer(outQueueCO1, 1, cSize * sizeof(float));
pipe.InitBuffer(inQueueSrc0, 1, cSize * sizeof(float));
pipe.InitBuffer(inQueueTmp, 1, cSize * sizeof(half));
pipe.InitBuffer(inQueueDeq, 1, cSize * sizeof(half));
pipe.InitBuffer(outQueueDst, 1, cSize * sizeof(int8_t));
}
__aicore__ inline void Process()
{
CopyIn();
SplitA();
SplitB();
Compute();
CopyOut();
CopyIn1();
Compute1();
CopyOut1();
}
private:
__aicore__ inline void CopyIn()
{
LocalTensor<half> a1Local = inQueueA1.AllocTensor<half>();
LocalTensor<half> b1Local = inQueueB1.AllocTensor<half>();
LocalTensor<half> deqLocal = inQueueDeq.AllocTensor<half>();
Nd2NzParams dataCopyA1Params;
dataCopyA1Params.ndNum = 1;
dataCopyA1Params.nValue = m;
dataCopyA1Params.dValue = k;
dataCopyA1Params.srcNdMatrixStride = 0;
dataCopyA1Params.srcDValue = k;
dataCopyA1Params.dstNzC0Stride = m;
dataCopyA1Params.dstNzNStride = 1;
dataCopyA1Params.dstNzMatrixStride = 0;
DataCopy(a1Local, aGM, dataCopyA1Params);
Nd2NzParams dataCopyB1Params;
dataCopyB1Params.ndNum = 1;
dataCopyB1Params.nValue = k;
dataCopyB1Params.dValue = n;
dataCopyB1Params.srcNdMatrixStride = 0;
dataCopyB1Params.srcDValue = n;
dataCopyB1Params.dstNzC0Stride = k;
dataCopyB1Params.dstNzNStride = 1;
dataCopyB1Params.dstNzMatrixStride = 0;
DataCopy(b1Local, bGM, dataCopyB1Params);
// 将量化参数搬运到UB
DataCopy(deqLocal, deqGM, cSize);
inQueueA1.EnQue(a1Local);
inQueueB1.EnQue(b1Local);
inQueueDeq.EnQue(deqLocal);
}
__aicore__ inline void SplitA()
{
...
}
__aicore__ inline void SplitB()
{
...
}
__aicore__ inline void Compute()
{
LocalTensor<half> a2Local = inQueueA2.DeQue<half>();
LocalTensor<half> b2Local = inQueueB2.DeQue<half>();
LocalTensor<float> c1Local = outQueueCO1.AllocTensor<float>();
MmadParams mmadParams;
mmadParams.m = m;
mmadParams.n = n;
mmadParams.k = k;
// 矩阵乘
Mmad(c1Local, a2Local, b2Local, mmadParams); // m*n
outQueueCO1.EnQue<float>(c1Local);
inQueueA2.FreeTensor(a2Local);
inQueueB2.FreeTensor(b2Local);
}
__aicore__ inline void CopyOut()
{
LocalTensor<float> c1Local = outQueueCO1.DeQue<float>();
GM_ADDR usrWorkspace = AscendC::GetUserWorkspace(workspace);
xGm.SetGlobalBuffer((__gm__ float *)(usrWorkspace));
FixpipeParamsV220 fixpipeParams;
fixpipeParams.nSize = n;
fixpipeParams.mSize = m;
fixpipeParams.srcStride = m;
fixpipeParams.dstStride = n;
fixpipeParams.ndNum = 1;
fixpipeParams.srcNdStride = 0;
fixpipeParams.dstNdStride = 0;
// 将矩阵乘的计算结果从CO1搬运到workspace
Fixpipe(xGm, c1Local, fixpipeParams);
outQueueCO1.FreeTensor(c1Local);
}
__aicore__ inline void CopyIn1()
{
// 将矩阵乘的计算结果从workspace搬运到UB
LocalTensor<float> src0Local = inQueueSrc0.AllocTensor<float>();
DataCopy(src0Local, xGm, cSize);
inQueueSrc0.EnQue(src0Local);
}
__aicore__ inline void Compute1()
{
LocalTensor<float> src0Local = inQueueSrc0.DeQue<float>();
LocalTensor<half> tmpLocal = inQueueTmp.AllocTensor<half>();
LocalTensor<half> deqLocal = inQueueDeq.DeQue<half>();
LocalTensor<int8_t> dstLocal = outQueueDst.AllocTensor<int8_t>();
// 量化计算
Cast(tmpLocal, src0Local, RoundMode::CAST_NONE, cSize);
LocalTensor<half> tmpHalfBuffer = src0Local.ReinterpretCast<half>();
Mul(tmpHalfBuffer, tmpLocal, deqLocal, cSize);
Cast(dstLocal, tmpHalfBuffer, RoundMode::CAST_NONE, cSize);
outQueueDst.EnQue<int8_t>(dstLocal);
inQueueSrc0.FreeTensor(src0Local);
inQueueTmp.FreeTensor(tmpLocal);
inQueueDeq.FreeTensor(deqLocal);
}
__aicore__ inline void CopyOut1()
{
...
}
private:
TPipe pipe;
TQue<TPosition::A1, 1> inQueueA1;
TQue<TPosition::A2, 1> inQueueA2;
TQue<TPosition::B1, 1> inQueueB1;
TQue<TPosition::B2, 1> inQueueB2;
TQue<TPosition::CO1, 1> outQueueCO1;
TQue<TPosition::VECIN, 1> inQueueDeq;
TQue<TPosition::VECIN, 1> inQueueSrc0;
TQue<TPosition::VECCALC, 1> inQueueTmp;
TQue<TPosition::VECOUT, 1> outQueueDst;
GlobalTensor<half> aGM;
GlobalTensor<half> bGM;
GlobalTensor<dst_T> cGM;
GlobalTensor<float> biasGM;
uint16_t m = 32, k = 32, n = 32;
uint16_t aSize, bSize, cSize;
...
【正例】
该算子对矩阵乘的结果进行量化计算时，可将量化参数搬运到FB(Fixpipe Buffer)上，调用一次Fixpipe接口实现矩阵乘结果的量化计算。
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 | ... public: __aicore__ inline KernelSample() { aSize = m * k; bSize = k * n; cSize = m * n; QuantSize = n; } __aicore__ inline void Init(__gm__ uint8_t *a, __gm__ uint8_t *b, __gm__ uint8_t *c, __gm__ uint8_t *deqTensor) { aGM.SetGlobalBuffer((__gm__ half *)a); bGM.SetGlobalBuffer((__gm__ half *)b); cGM.SetGlobalBuffer((__gm__ float *)c); deqGM.SetGlobalBuffer((__gm__ uint64_t *)deqTensor); pipe.InitBuffer(inQueueA1, 1, aSize * sizeof(half)); pipe.InitBuffer(inQueueA2, 1, aSize * sizeof(half)); pipe.InitBuffer(inQueueB1, 1, bSize * sizeof(half)); pipe.InitBuffer(inQueueB2, 2, bSize * sizeof(half)); pipe.InitBuffer(outQueueCO1, 1, cSize * sizeof(float)); pipe.InitBuffer(inQueueDeq1, 1, QuantSize * sizeof(uint64_t)); pipe.InitBuffer(inQueueDeq, 1, QuantSize * sizeof(uint64_t)); } __aicore__ inline void Process() { CopyIn(); SplitA(); SplitB(); SplitDeq(); Compute(); CopyOut(); } private: __aicore__ inline void CopyIn() { LocalTensor<half> a1Local = inQueueA1.AllocTensor<half>(); LocalTensor<half> b1Local = inQueueB1.AllocTensor<half>(); LocalTensor<uint64_t> deq1Local = inQueueDeq1.AllocTensor<uint64_t>(); Nd2NzParams dataCopyA1Params; dataCopyA1Params.ndNum = 1; dataCopyA1Params.nValue = m; dataCopyA1Params.dValue = k; dataCopyA1Params.srcNdMatrixStride = 0; dataCopyA1Params.srcDValue = k; dataCopyA1Params.dstNzC0Stride = m; dataCopyA1Params.dstNzNStride = 1; dataCopyA1Params.dstNzMatrixStride = 0; DataCopy(a1Local, aGM, dataCopyA1Params); Nd2NzParams dataCopyB1Params; dataCopyB1Params.ndNum = 1; dataCopyB1Params.nValue = k; dataCopyB1Params.dValue = n; dataCopyB1Params.srcNdMatrixStride = 0; dataCopyB1Params.srcDValue = n; dataCopyB1Params.dstNzC0Stride = k; dataCopyB1Params.dstNzNStride = 1; dataCopyB1Params.dstNzMatrixStride = 0; DataCopy(b1Local, bGM, dataCopyB1Params); // 将量化参数搬运到L1上 DataCopy(deq1Local, deqGM, QuantSize); inQueueA1.EnQue(a1Local); inQueueB1.EnQue(b1Local); inQueueDeq.EnQue(deq1Local); } __aicore__ inline void SplitA() { ... } __aicore__ inline void SplitB() { ... } __aicore__ inline void SplitDeq() { LocalTensor<uint64_t> deq1Local = inQueueDeq1.DeQue<uint64_t>(); LocalTensor<uint64_t> deqLocal = inQueueDeq.AllocTensor<uint64_t>(); // 将量化参数从L1->FB DataCopy(deqLocal, deq1Local, { 1, (uint16_t)(QuantSize * sizeof(uint64_t) / 128), 0, 0 }); inQueueDeq.EnQue<uint64_t>(deqLocal); inQueueDeq1.FreeTensor(deq1Local); } __aicore__ inline void Compute() { LocalTensor<half> a2Local = inQueueA2.DeQue<half>(); LocalTensor<half> b2Local = inQueueB2.DeQue<half>(); LocalTensor<float> c1Local = outQueueCO1.AllocTensor<float>(); MmadParams mmadParams; mmadParams.m = m; mmadParams.n = n; mmadParams.k = k; // 矩阵乘 Mmad(c1Local, a2Local, b2Local, mmadParams); // m*n outQueueCO1.EnQue<float>(c1Local); inQueueA2.FreeTensor(a2Local); inQueueB2.FreeTensor(b2Local); } __aicore__ inline void CopyOut() { LocalTensor<float> c1Local = outQueueCO1.DeQue<float>(); LocalTensor<uint64_t> deqLocal = inQueueDeq.DeQue<uint64_t>(); SetFixpipeNz2ndFlag(1, 0, 0); DataCopyCO12DstParams dataCopyParams; dataCopyParams.nSize = n; dataCopyParams.mSize = m; dataCopyParams.srcStride = m; dataCopyParams.dstStride = n; dataCopyParams.quantPre = QuantMode_t::VQF322B8_PRE; dataCopyParams.nz2ndEn = true; // 将矩阵乘进行量化后的计算结果搬出 DataCopy(cGM, c1Local, DataCopyCO12DstParams); outQueueCO1.FreeTensor(c1Local); } private: TPipe pipe; TQue<QuePosition::A1, 1> inQueueA1; TQue<QuePosition::A2, 1> inQueueA2; TQue<QuePosition::B1, 1> inQueueB1; TQue<QuePosition::B2, 1> inQueueB2; TQue<QuePosition::C1, 1> inQueueDeq1; TQue<QuePosition::C2PIPE2GM, 1> inQueueDeq; TQue<QuePosition::CO1, 1> outQueueCO1; GlobalTensor<half> aGM; GlobalTensor<half> bGM; GlobalTensor<float> cGM; GlobalTensor<uint64_t> deqTensorGM; uint16_t m = 32, k = 32, n = 32; uint16_t aSize, bSize, cSize, QuantSize; ... |
